To register antibodies in your Vault, first you will need to prepare your sequences in a tabular format (e.g. .csv or .xlsx). Currently it is not possible to create a new antibody structure representation using the Macromolecule editor.

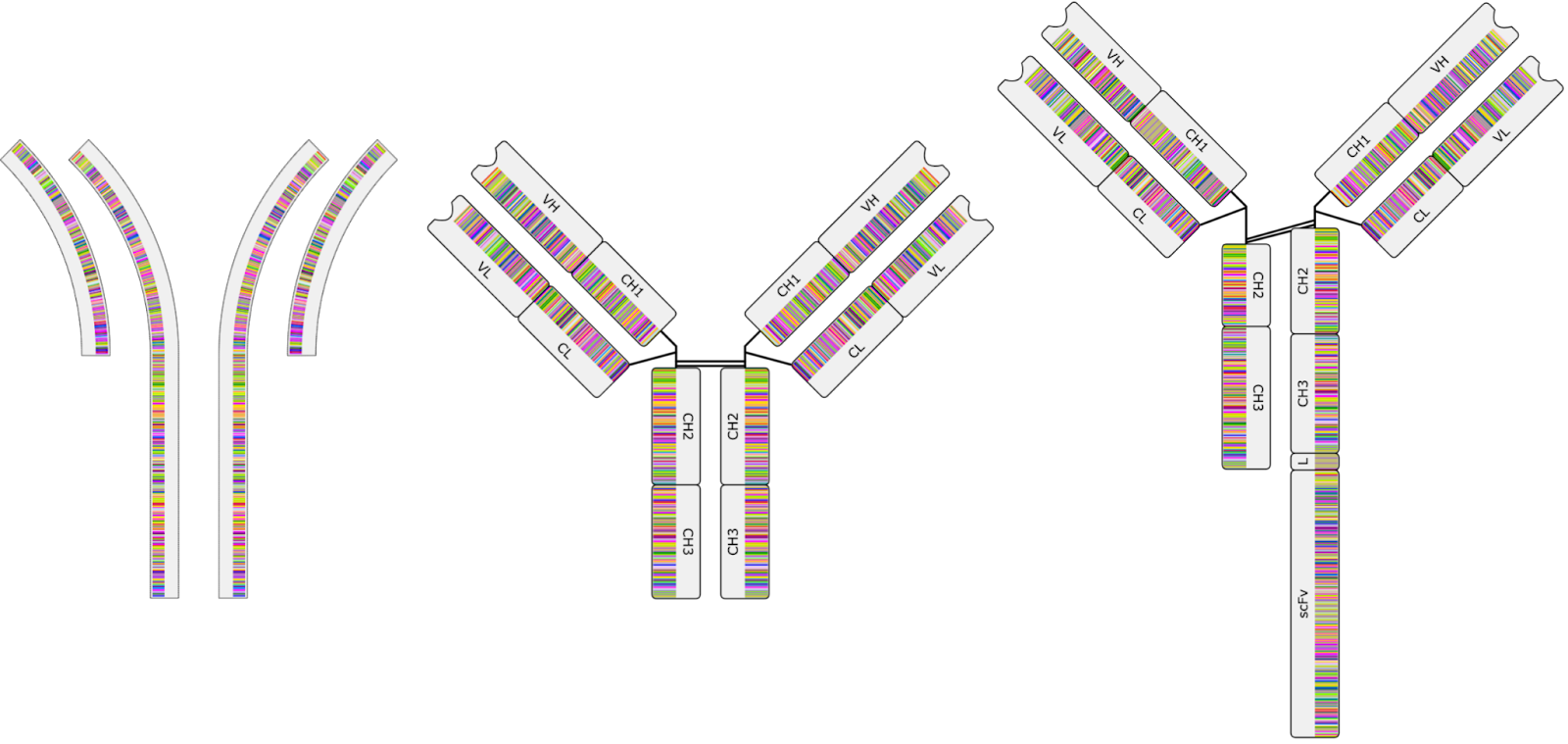

Depending on your desired level of detail (see Fig. 1) you will need to provide varying levels of annotation. We will cover what is needed for each level of representation below.

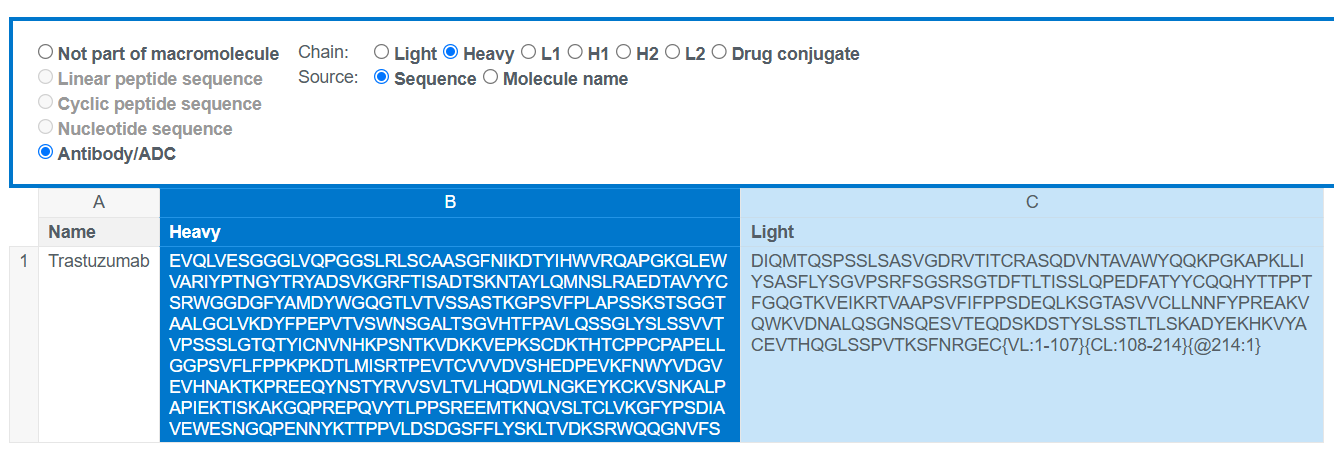

The minimum necessary level of information is to define one column for the heavy chain and one for the light chain, like in the example below:



The 'name' column, while not essential, serves as a synonym that can facilitate searching for the antibody within CDD Vault after upload.

This is sufficient for obtaining a proto-y shaped representation and it describes a monospecific antibody as depicted in Fig. 2.

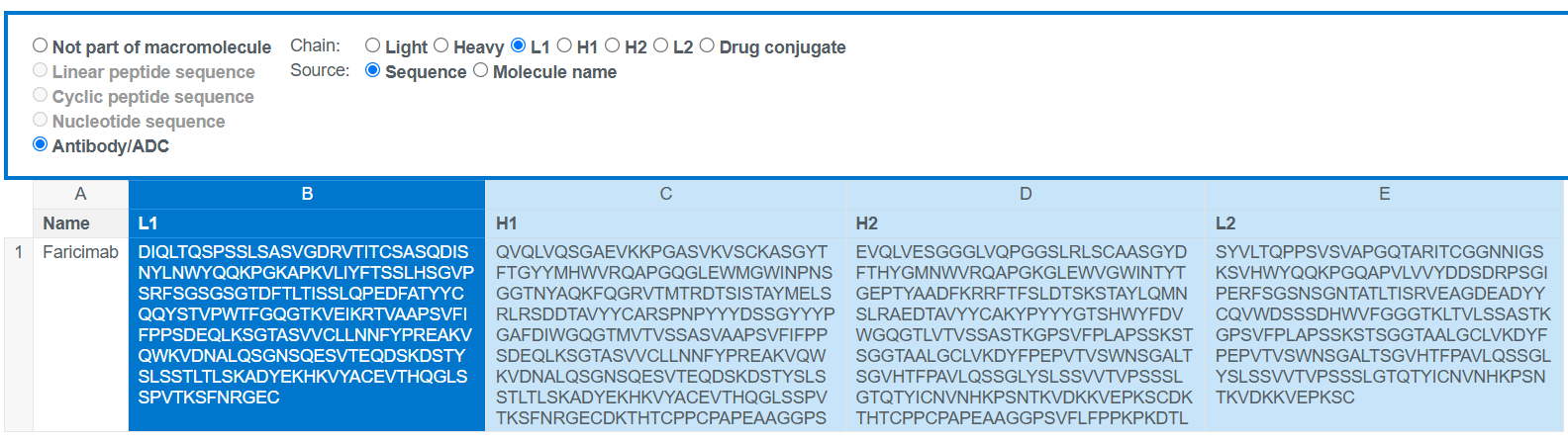

If you are working with a bispecific antibody, you will need to add the information for both heavy and light chains separately, like in the example below:

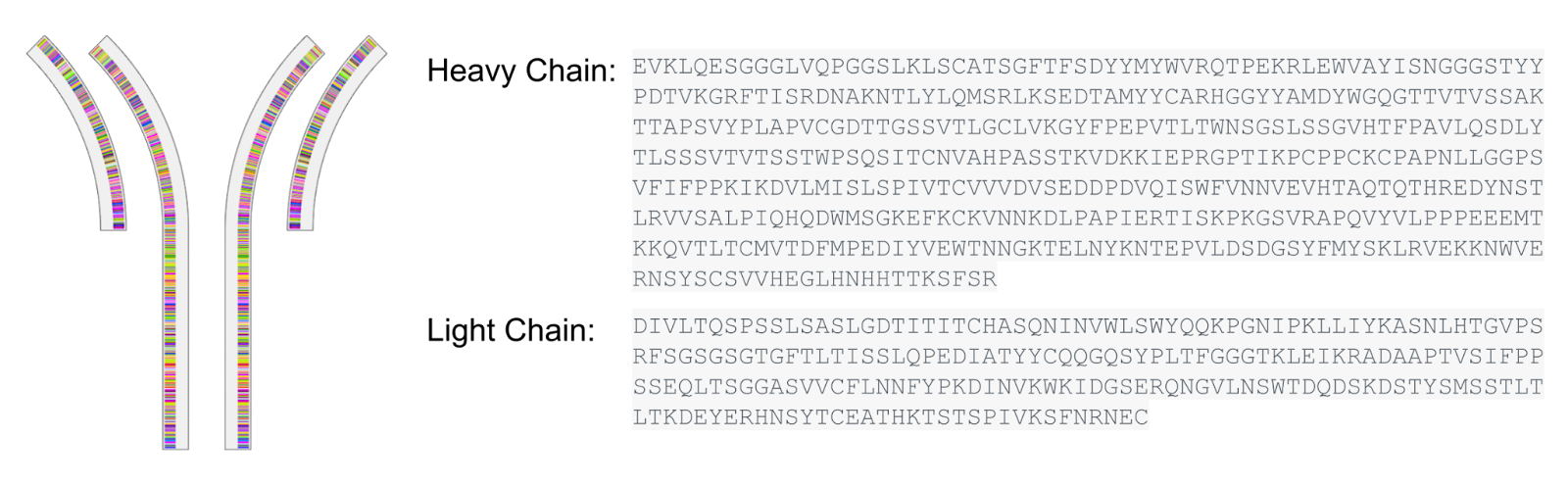

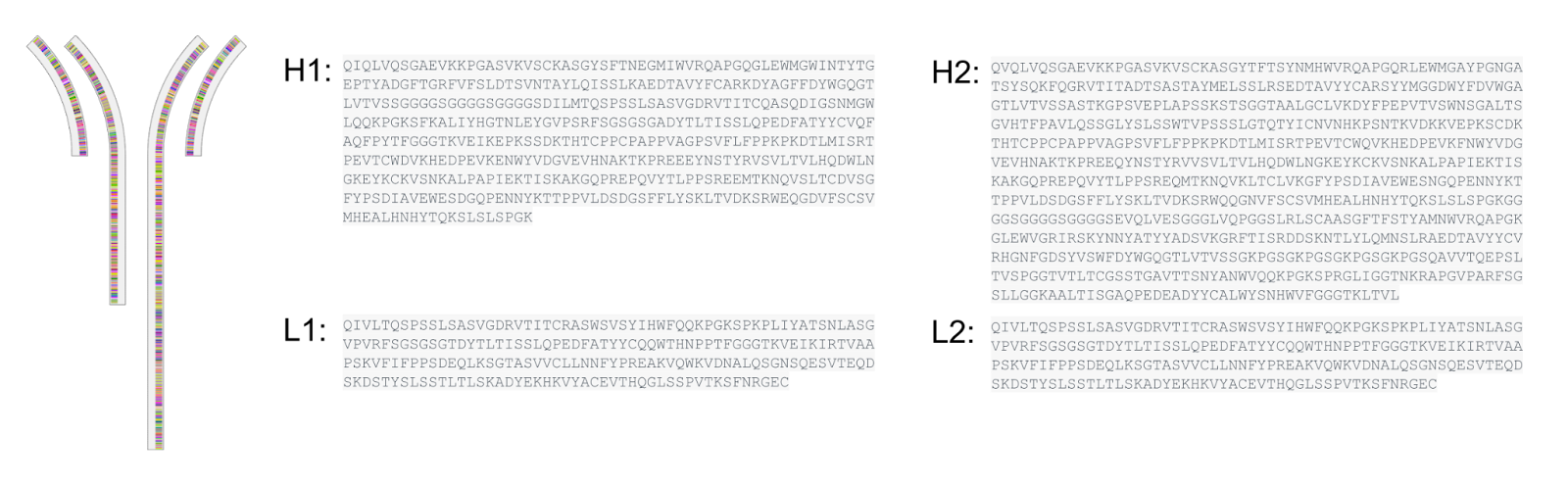

Also in this case, the representation will be a proto-y shape and will describe the bispecific nature of the antibody as depicted in Fig. 3.



The next step is to annotate information about domains, hinge regions, and disulfide bridges to achieve a more detailed representation of the antibody.

Note: The colors represented in the antibody chains are indicative of the amino acids present can be used for quick visual comparisons.

Metadata annotation

Disulfide bridges, hinge region, and domain regions can be automatically recognized by CDD Vault upon import of light and heavy chain sequences. The recognition currently works for antibodies following standard patterns, and results in a representation resembling that of Figure 4. Step 2 describes how to activate the automatic recognition of the high-level structure. If this is not desired, or not working due to a peculiar antibody structure, or you simply want to learn more about CDD metadata annotation, here below we describe how you can add these annotation manually.

Domain region annotation

In order to annotate the antibody chains, you need to specify the starting and ending amino acids for each domain within brackets, as you can see in this example below:

Heavy → …LSPGK{VH:1-120}{CH1:121-218}{CH2:234-343}{CH3:344-450}

Light → …RGEC{VL:1-107}{CL:108-214}

• The VH and CH tag stands for “Variable Heavy’” chain and “Constant Heavy” chain. The presence of numbers (CH1, CH2, CH3) allows us to differentiate the different constant regions. Similarly these tags are VL for the light chain. You may use different tag annotations if desired.
• The numbers (e.g. 1-120) define the starting and ending amino acid position for each region.

Hinge region annotation

In order to annotate the hinge region a tag needs to be added to the heavy chain, as in the example below:

Heavy → …LSPGK{VH:1-120}{CH1:121-218}{CH2:234-343}{CH3:344-450}{H:219-233}

• The H tag identifies the hinge region and the numbers 219-233 define the boundaries of the hinge region in the Heavy Chain sequence.

Disulfide bridge annotation

To add disulfide bridges to an antibody, the cysteines involved in the bridges will be marked. This annotation, like others, should be enclosed in brackets and present in both the light and heavy chains, as demonstrated in the example provided below:

Heavy → …{CH3:344-450}{H:219-233}{@223:1}{@229:2}{@232:3}

Light → …RGEC{VL:1-107}{CL:108-214}{@214:1}

• The @ symbol identifies the annotation for the disulfide bridge
• The first number defines the amino acid position involved in the disulfide bridge for the respective chain
• The second number defines the identifier of the disulfide bridge. Each identifier on one chain must correspond to an identical identifier on another chain. In this example, the disulfide bridge is between heavy chain residue 223 and the light chain residue 214. For the remaining disulfide bridges:
  • If the antibody is monospecific then it is implied that the remaining bridges will be between the identical heavy chains
  • If the antibody is bispecific, each remaining tag’s identifier on one heavy chain must correspond an identical identifier on the other heavy chain
• Intra-chain disulfide bridges do not need to be explicitly defined, but if desired they can be depicted in the same way of inter-chain bridges

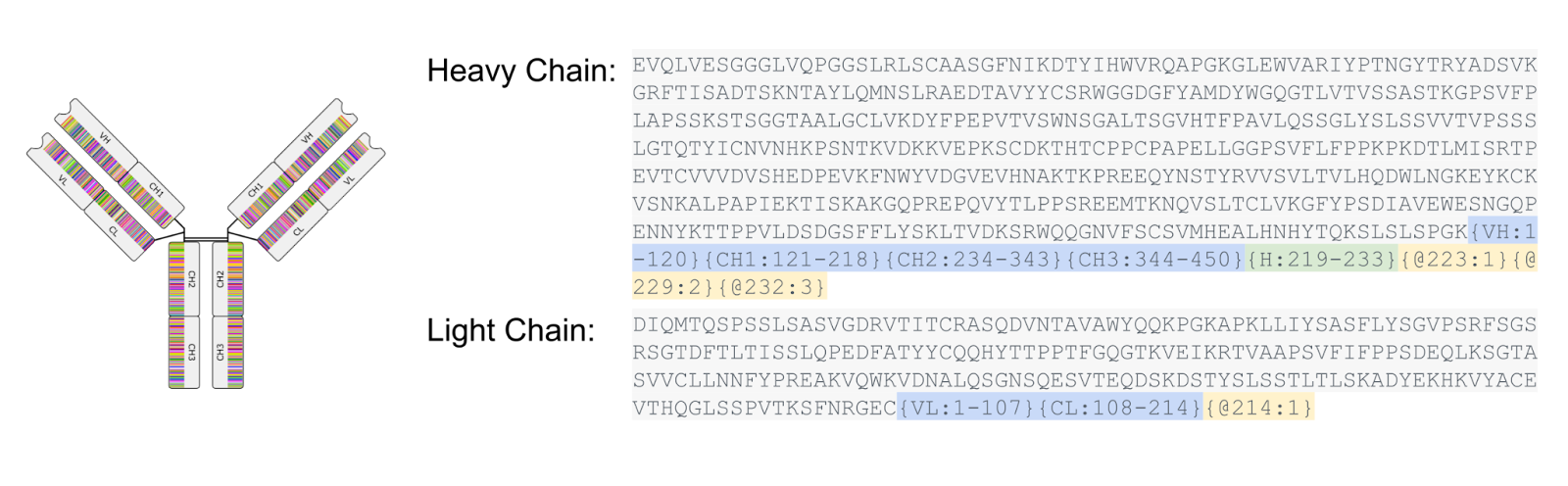

The resulting table with all the described annotations will then look like this:



Once all information about regions and bridges are annotated, the imported structure will be represented as shown in Fig. 4.



The import process of the structure of the antibody in CDD Vault is described in the next chapter.

Note: The system will give you an error if your disulfide bond amino acid position is NOT a cysteine.

Step 2a: importing antibodies in CDD Vault in bulk

Once a data file has been created, the next step is to access the Import Data panel in your Vault and select your file. For a detailed guide on the import process, please refer to Importing the first compound library.

Proceed by selecting the “Compose macromolecules from columns” option from the drop-down menu, and click on “Update”. In the following step, select the “Antibody/ADC” option from the radio button.

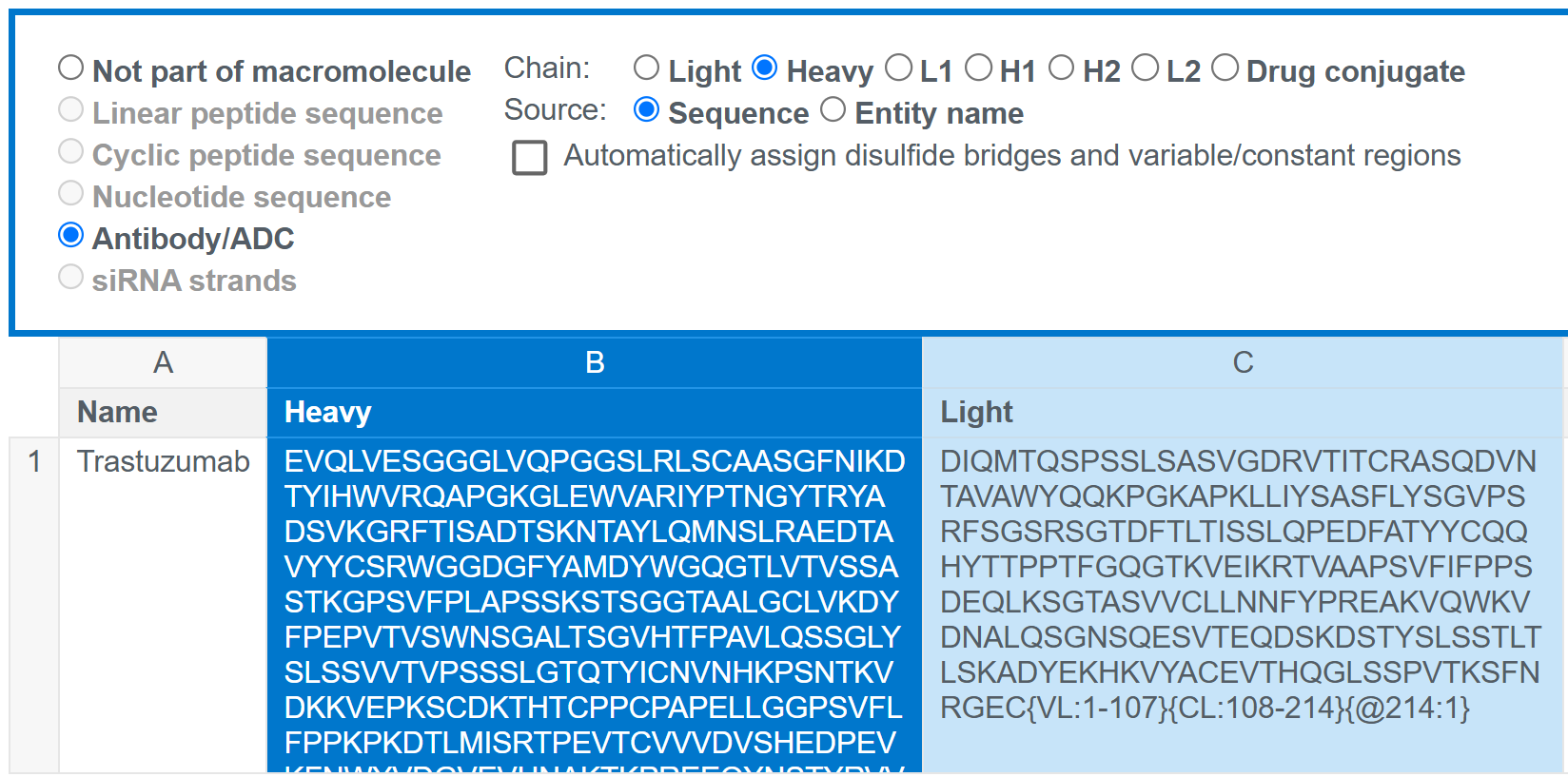

If you have sequences for the light and heavy chains, your screen will look something like this:

Proceed by mapping the Light and Heavy chain fields to the corresponding column in your datasheet.

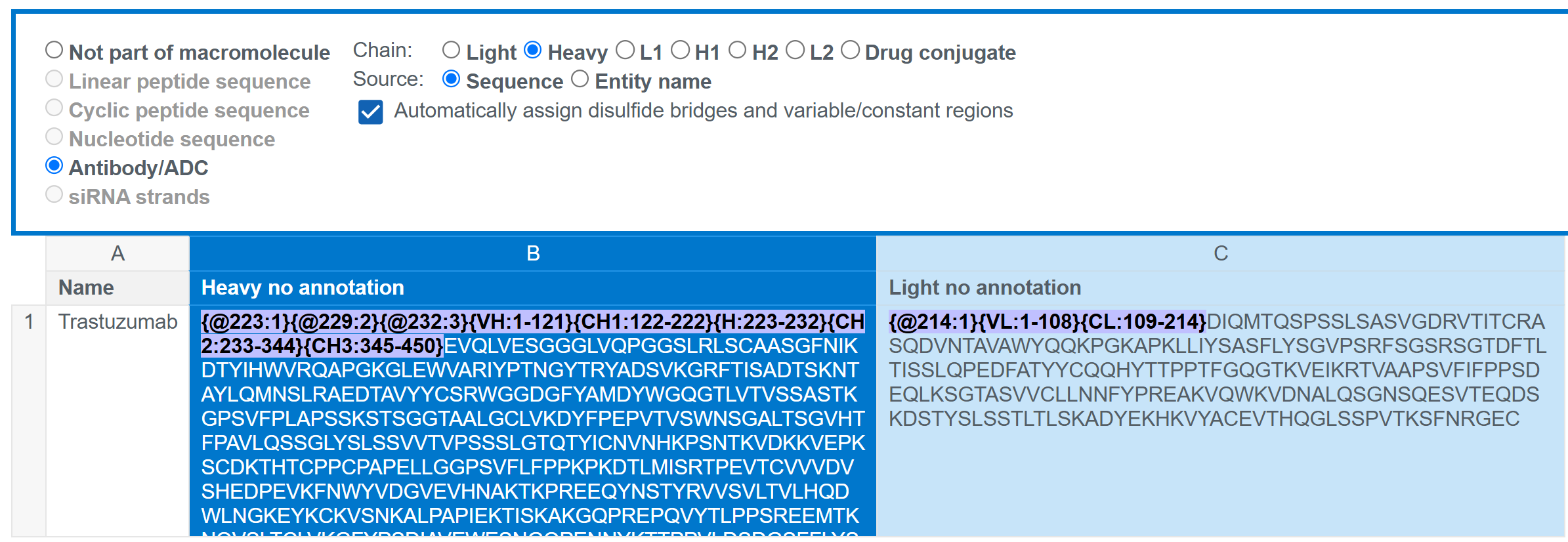

If you want to activate the automatic metadata annotation, and let CDD Vault recognize disulfide bridges, hinge region, and variable/constant regions, tick the "Automatically assign disulfide bridges and variable/constant regions" box. This will add the metadata annotation in front of the sequences, as in this example below:

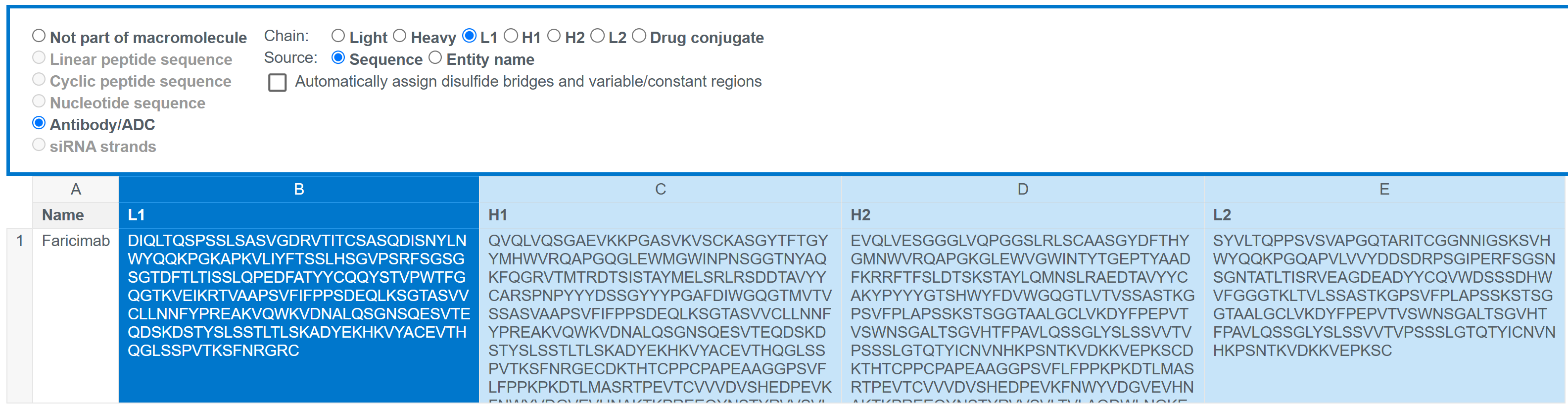

If you are working with an asymmetric antibody, you can mark 3 chains (H1,H2, Light or Heavy, L1, L2) or 4 chains (H1,H2,L1,L2). In this case, your screen will look something like this:

Please note: at this step you do not need to map the Name column.

Once you have mapped all fields to the corresponding column, click on “Process File”.

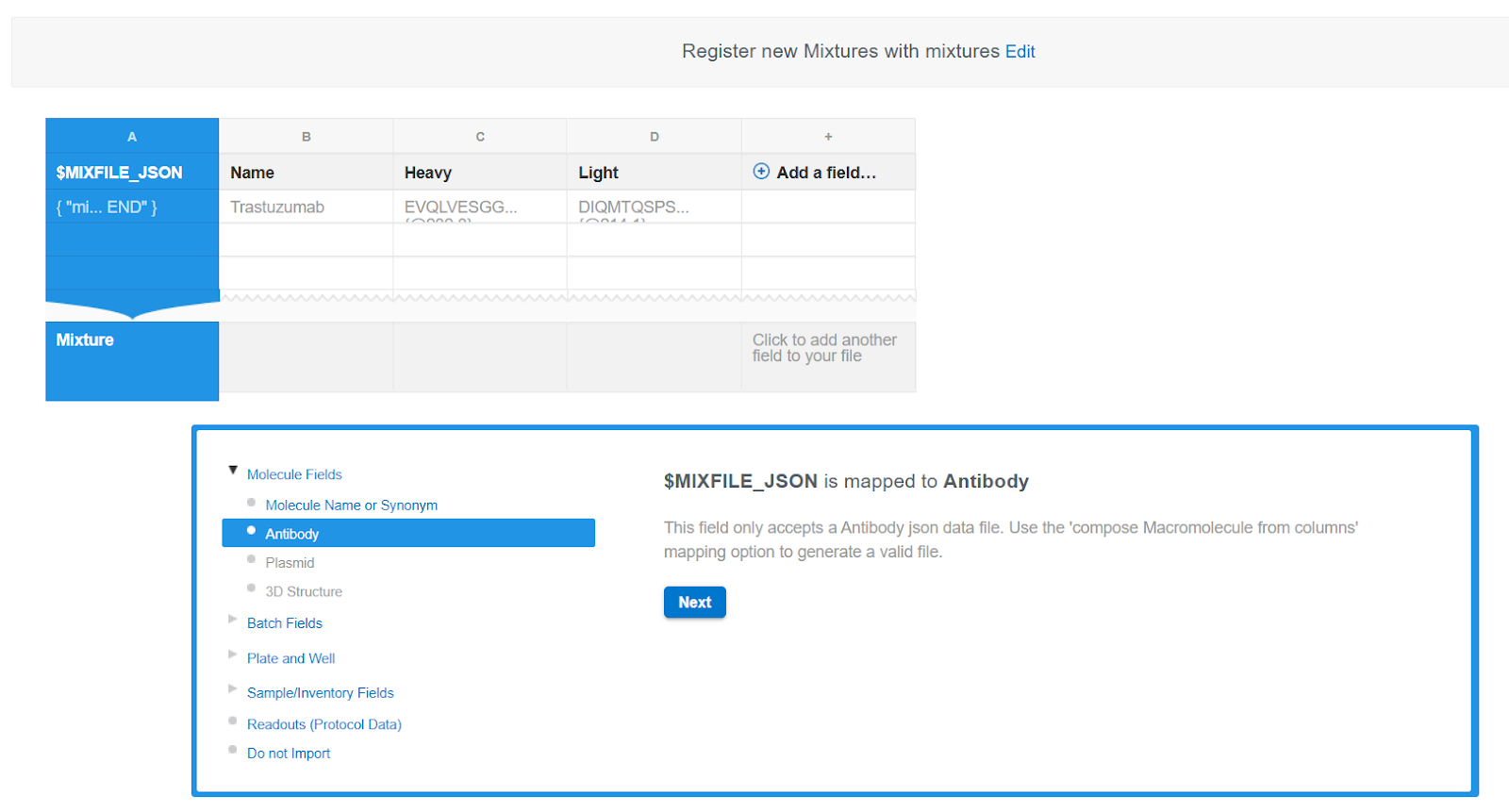

Once the file is processed, a new column is added to the table in the Import flow, with the header “$MIXFILE_JSON”. This should be automatically mapped to the Antibody field of CDD Vault as in the screenshot below:

You can now map additional fields, such as “Name” to Synonym, or other columns that you may have added in your datasheet. Once all fields are mapped, you can commit the resulting entity to your vault and proceed to use it as your other molecules within the Vault.

Please note: while you do not need to import the column sequence chains again since their information is embedded in the “$MIXFILE_JSON” column, you can decide to import them in user-defined fields at the Molecule level to later search for them in CDD Vault.

Step 2b: importing a single antibody in CDD Vault

A single antibody can be registered using the "Create a new..." button in the top left corner and manually inserting the sequences in the corresponding boxes.

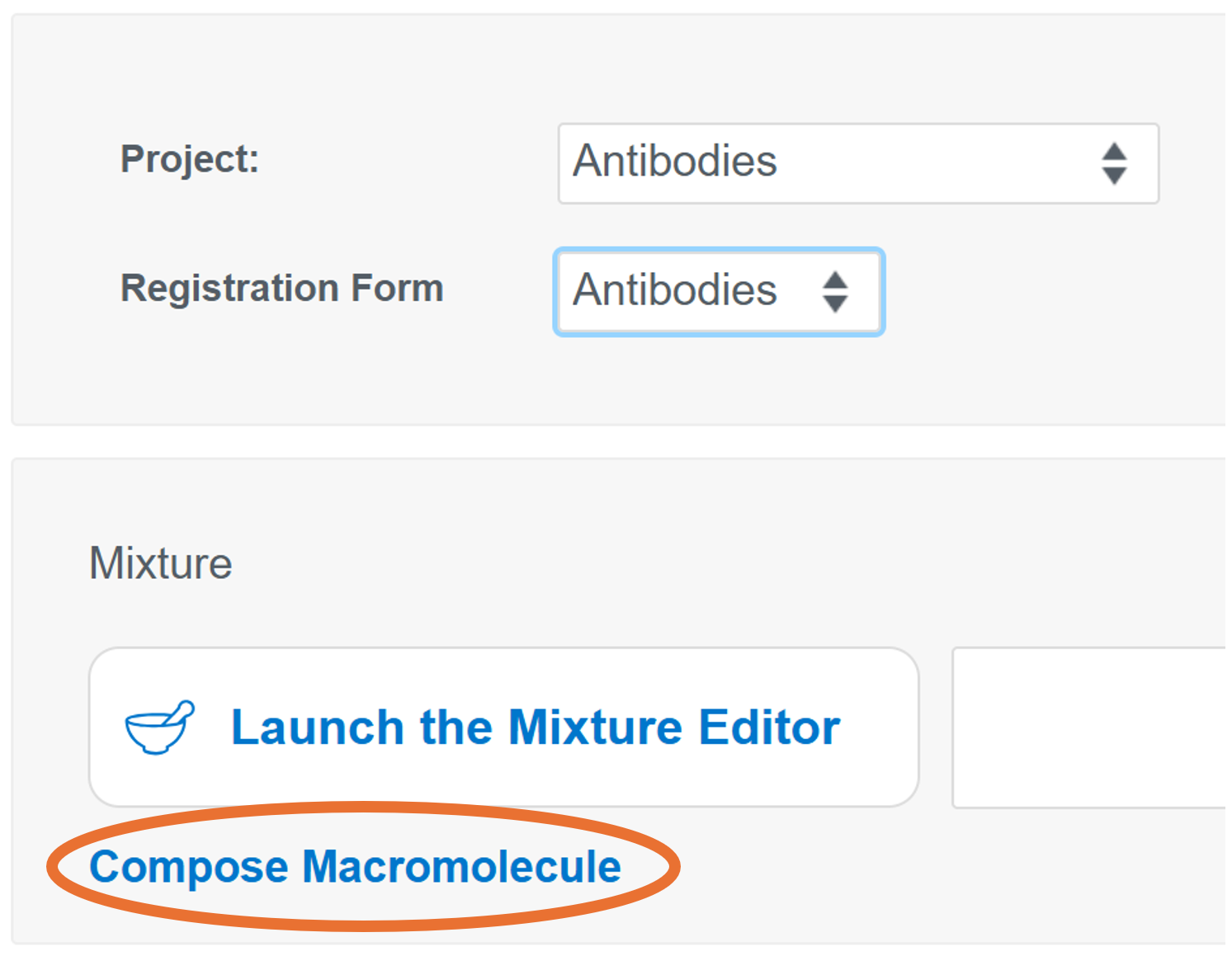

Start by selecting a registration form that uses the registration type Mixture, and click on "Compose Macromolecule". Ask your Vault admin if you are not sure what registration form to use for antibodies.

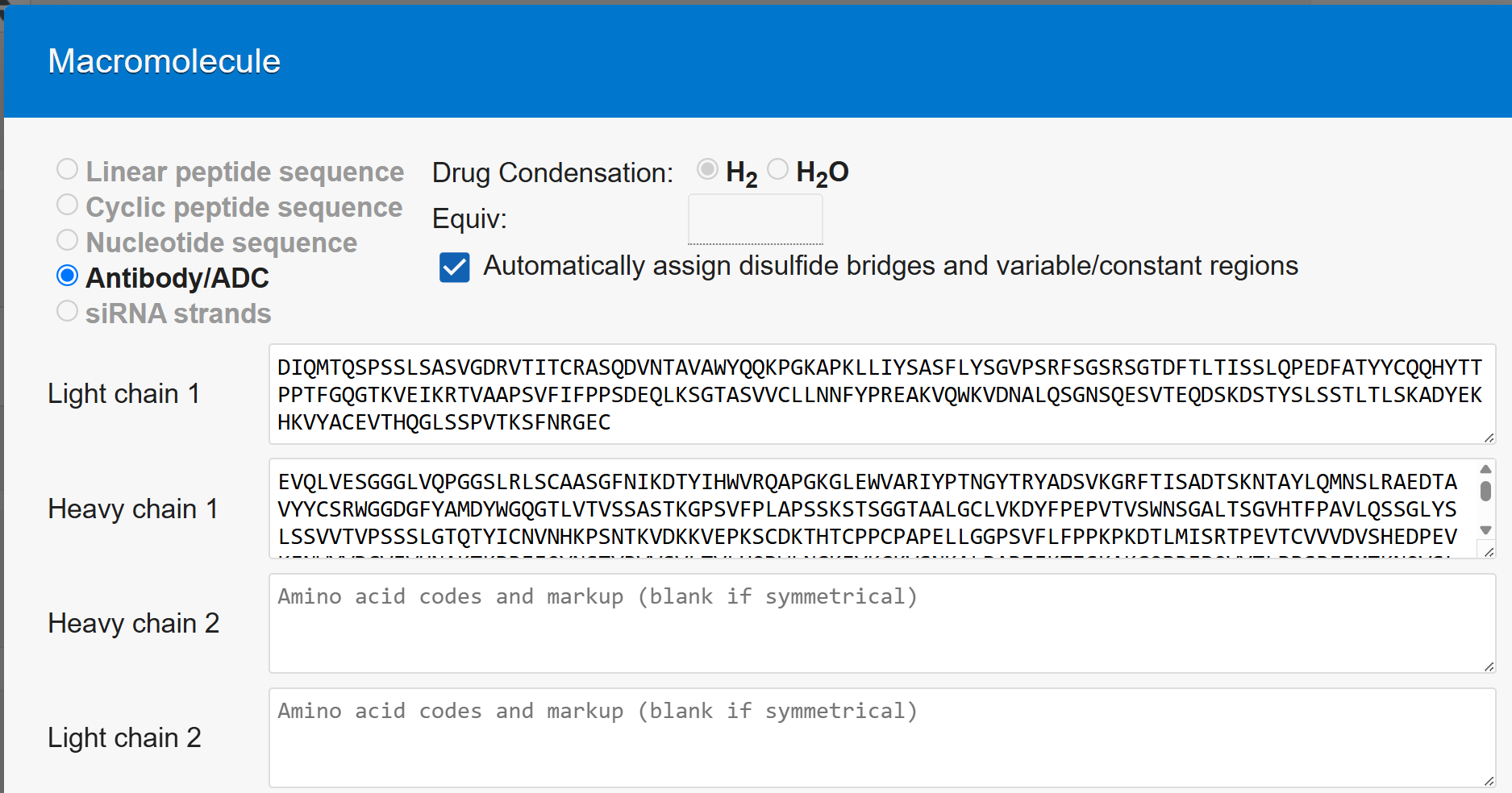

Proceed with copy-pasting the sequences for light and heavy chains in the corresponding boxes. If your antibody has two identical light and heavy sequences, fill only the boxes corresponding to "Light chain 1" and "Heavy chain 1". You can tick the "Automatically assign disulfide bridges and variable/constant regions" box if you have not manually annotated the sequences and would like CDD Vault to do it for you.

Proceed by clicking the green "Save" button in the bottom right corner, then proceed with adding further information about the molecule and batch, and finalize the registration by clicking "Create molecule".
